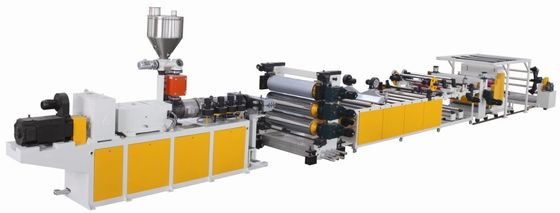

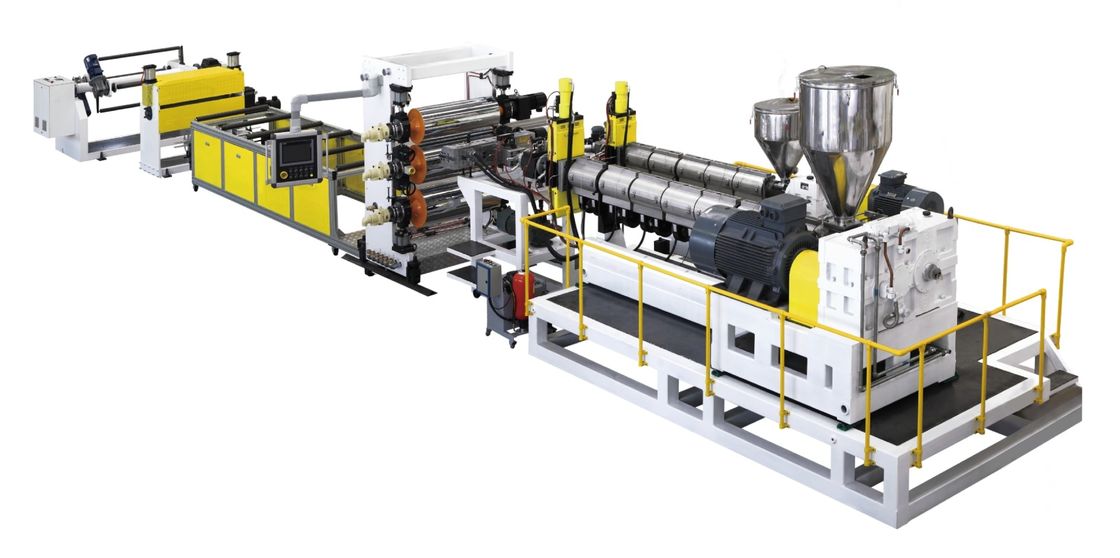

TPV TPE Carmat Sheet Extrusion Machine 2000 - 3000 Gsm 2-3mm

Certification
China Wuhu Kaijinhua New Material Technology Co., Ltd certification
China Wuhu Kaijinhua New Material Technology Co., Ltd certification
I'm Online Chat Now

TPV TPE Carmat Sheet Extrusion Machine 2000 - 3000 Gsm 2-3mm

TPV TPE Carmat Sheet Extrusion Machine 2000 - 3000 Gsm 2-3mm
TPV TPE Carmat Sheet Extrusion Machine 2000 - 3000 Gsm 2-3mm TPV TPE Carmat Sheet Extrusion Machine 2000 - 3000 Gsm 2-3mm TPV TPE Carmat Sheet Extrusion Machine 2000 - 3000 Gsm 2-3mm TPV TPE Carmat Sheet Extrusion Machine 2000 - 3000 Gsm 2-3mm

Large Image :  TPV TPE Carmat Sheet Extrusion Machine 2000 - 3000 Gsm 2-3mm

Product Details:
Place of Origin: CHINA
Brand Name: KJH
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 100000-200000
Packaging Details: steel frame + plastic film
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 2 sets per month

TPV TPE Carmat Sheet Extrusion Machine 2000 - 3000 Gsm 2-3mm

Description
Material: TPE/TPV Extrusion Weight: 2000-3000 Gsm
Sheet Thickness: 2-3mm Application: Carmat Thermoforming
Layer: 1-3 Co-extrusion: Yes
Highlight:

TPV carmat sheet extrusion machine

,

TPE Carmat Sheet Extrusion Machine

,

3mm TPE Sheet Extrusion Machine

TPE/TPV carmat vacuum forming sheet extrusion machine

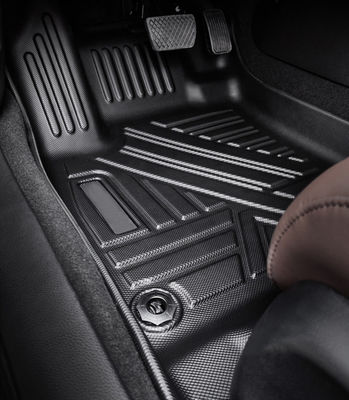

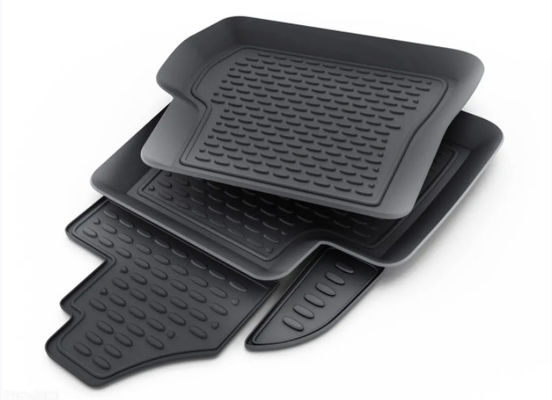

The scraps of TPE/TPV vacuum forming carmats can be 100% directly reused after being crushed, and the cost of vacuum forming processed mats is cheaper than injection molding. As people's requirements for environmental protection are getting higher and higher, TPE/TPV car floor mats have gradually replaced traditional rubber, PVC or EVA floor mats, occupying the mainstream market.



In order to save costs, our company has developed an ABA three-layer co-extrusion sheet extruder. Among them, layer A is TPE/TPV surface layer material that is easy to process and demoulding, and the middle layer of layer B is TPE/TPV material with low cost.



Model

Main extruder



Co-extruder



 Transmission power(kW) 160 55
Screw Diameter (mm) 135 90
Heating Power(kW) 50 30
 Screw Torque(N.m) 40000 11200
 Output (kg) 200-400 100-200



TPV TPE Carmat Sheet Extrusion Machine 2000 - 3000 Gsm 2-3mm 0TPV TPE Carmat Sheet Extrusion Machine 2000 - 3000 Gsm 2-3mm 1
